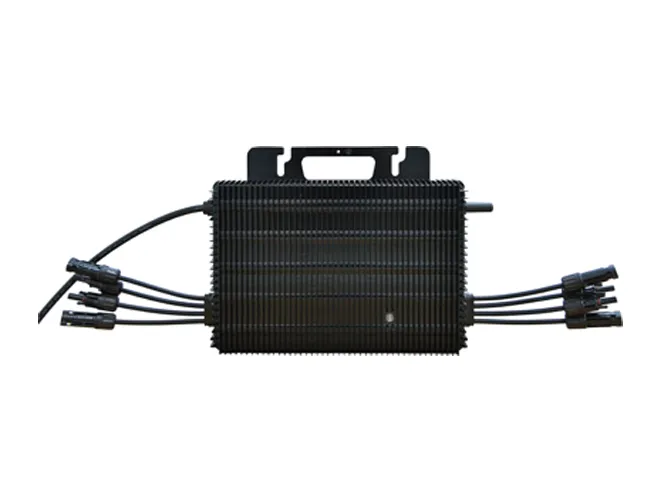

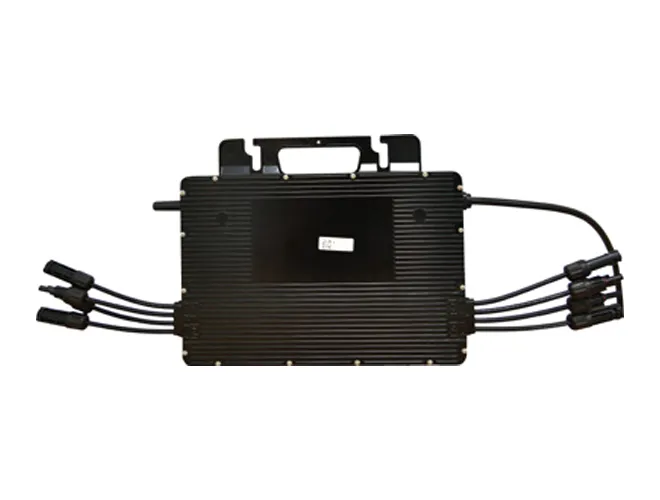

Features of 1.6M-G1P-EU(1.6KW, 230Vac, 50Hz/60Hz)
Plug-and-Play made effortless
Single unit connects to 4 PV panel
IP67 protection degree
EN62109-1, EN62109-2 EN61000-6-2/4
MPPT for Max. power generation＆efficiency
WlFl remote monitoring
Multiple protection functions
Suitable for crystalline silicon and thin film PV panel
MODEL | 1.6M-G1P-EU |
(DC)/Input Data(DC) | |
Recommended solar panel input power | 275-530W×4 |
Number of DC input connections | MC4×4 |
Max. input voltage | 60V |
Max input short-circuit current | 25A*4 |
PV Operating voltage | 16-60V |
Start-up voltage | 22V |
MPPT tracking range | 22-55V |
MPPT tracking accuracy | >99.5% |
Max. continuous input current | 14A*4 |
(AC)/Output Data(AC) | |
Max. continuous output power | 1600W |
Nominal output voltage | 230V |
Operating voltage range | 190-270V |
Max. continuous output current | 6.95A |
Nominal output frequency | 50Hz/60Hz |
Output frequency range | 47.5-51.5Hz/57.5-62.5Hz |
THD | <5% |
Power factor | >0.99 |
Peak efficiency | 96% |
Protective class | Class I |
Protection Function | |
Operating ambient temp. | -40℃ to +65℃ |
Indication light quantity | Working status: Led lightt |
Communication connection mode | Wi-Fi/2.4G |
Cooling method | Natural cooling(no fan) |
Working environment | Indoor and Outdoor |
Weight | 5.2kg |
Size (L*W*H)mm | 342mm*225.4mm*50mm |

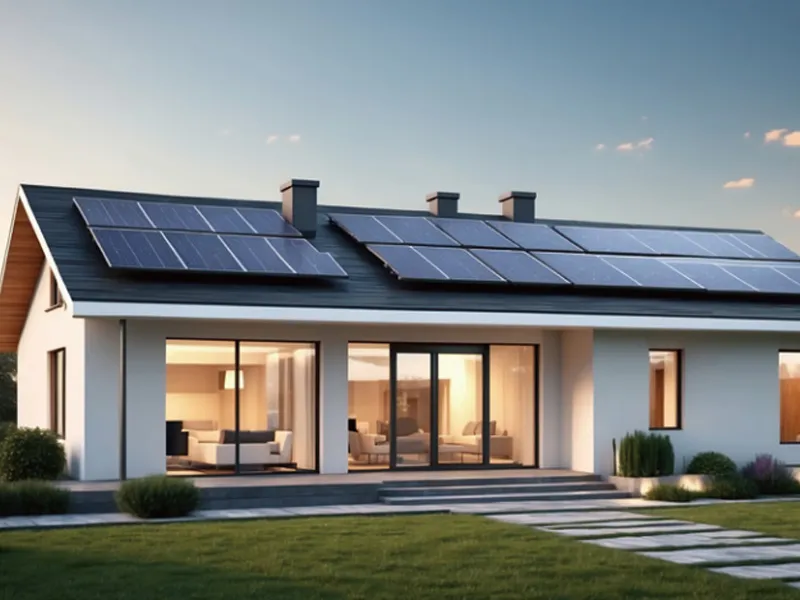

Application of Hybrid Microinverter:
Our hybrid microinverter is designed to cater to a variety of users, making solar energy accessible and efficient for:
Apartment Dwellers
Renters
Urban Homesteaders
Anyone looking to dip their toes into solar energy.
For those interested in off-grid solutions, our single phase off grid inverter complements the hybrid microinverter by providing reliable power in areas without grid access, ensuring energy independence and resilience.
