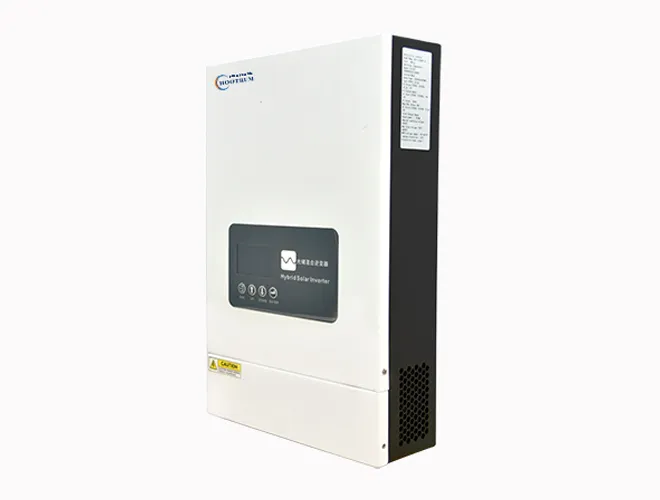

The HY3K12V-1PL-EU is a single phase hybrid inverter designed for efficient energy management.
Parallel operation with up to 9 Units
Programmable supply priority for PV, Battery or Grid
Programmable multiple operation Modes
Built-in MPPT solar controller 100/120A
Direct plug Wifi dongle supported
Protection level: IP21
MODEL | HY3K12V-1PL-EU |
Max PV Input Power | 3500w |
Rated Output Power | 3000w |
Max Charging Power | 3000w |
Phase | 1-Phase in/1-Phase out |
PV INPUT (DC） | |
Nominal DC Voltage /Max DC voltage | 210VDC/300VDC |
Start-up Voltage | 55VDC |
MPPT Voltage Range | 60VDC-280VDC |
Number of MPPT /Max Input Current | 1/20A |
MPPT Efficiency | >99% |
GRID-TIE-OPERATION GRID-TIE OUTPUT (AC) | |
Nominal Output Voltage | 120VAC |
Output Voltage Range | 90-140VAC |
Nominal Output Current | 25A |
Power Factor | >0.99 |
THDI | <3% |
EFFICIENCY | |
Max Conversion Efficiency (DC/AC) | 93%(Battery To AC ) / 96%(PV To AC) |
DFF-GRID, HYBRID OPERATION | |
AC INTPUT | |
AC Start up Voltage / Auto Restart Voltage | 90VAC/100VAC |
Acceptable Input Voltage Range | 90-140VAC |
Max AC Input Current | 30A |
BATTERY MODE OUTPUT (AC) | |
Nominal Output Voltage | 230VAC |
Output Rating Power | 3000w |
Surge Power | 4500w |
Transfer Time | <10ms |
Output Waveform | Pure sine wave |
THDV | <3% |
Efficiency(DC to AC) | 92% |
BATTERY & CHARGER | |
Nominal DC Voltage | 12VDC |
Max PV / AC Charging Current | 150A |
GENERAL | |
PHYSICAL | |
Dmmension,D*W*H(mm) | 100*262*430 |
Net Weight(kg) | 8 |
INTERFACE | |
Upper Comptter Communication Port | RS-485 |
WIFI / BMS Communication Port | RS-485 |
ENVIRONMENT | |
Humidity | 0-9%RH(Non-condensing) |
Operating Temperature | -10 to 50 |
