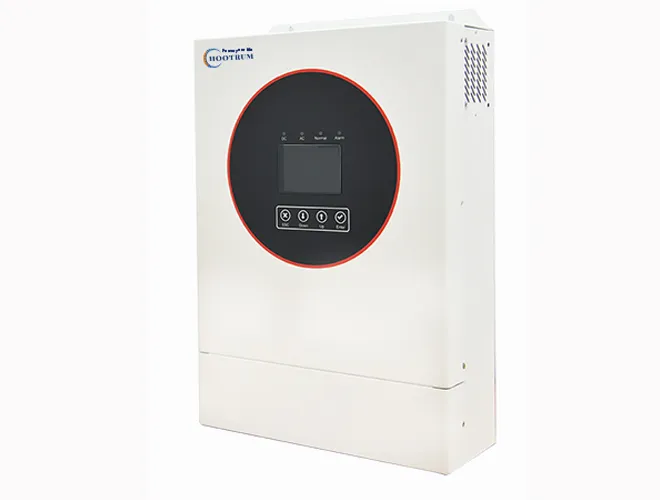

This IP21 wall-mounted hybrid inverter supports both off-grid and grid-tied dual mode operation, with an external CT sensor for intelligent backflow prevention. It features an excellent LCD color touchscreen for intuitive and convenient operation. Designed for stable indoor operation, this robust single phase hybrid inverter provides an efficient and reliable green energy solution for household electricity.
Parallel operation with up to 9 Units
Programmable supply prority for PV, Battery or Grid
Programmable multiple operation modes
Built-in MPPT solar controller 100/120A
Direct plug Wifi dongle supported
Protection level: IP21
LCD color touch screen
MODEL | HY6.5K48V-1P-EU |
Max PV Input Power | 7000w |
Rated Output Power | 6500w |
Max Charging Power | 6500w |
Phase | 1-Phase in/1-Phase out |
PV INPUT (DC） | |
Nominal DC Voltage /Max DC voltage | 360VDC/450VDC |
Start-up Voltage | 55VDC |
MPPT Voltage Range | 60VDC-430VDC |
Number of MPPT /Max Input Current | 1/20A |
MPPT Efficiency | >99% |
GRID-TIE-OPERATION GRID-TIE OUTPUT (AC) | |
Nominal Output Voltage | 230VAC |
Output Voltage Range | 170-264VAC/90-264VAC |
Nominal Output Current | 28A |
Power Factor | >0.99 |
THDI | <3% |
EFFICIENCY | |
Max Conversion Efficiency (DC/AC) | 93%(Battery To AC)/97%(PV To AC) |
DFF-GRID, HYBRID OPERATION | |
AC INTPUT | |
AC Start up Voltage / Auto Restart Voltage | 170VAC/180VAC |
Acceptable Input Voltage Range | 170-264VAC/90-264VAC |
Max AC Input Current | 33A |
BATTERY MODE OUTPUT (AC) | |
Nominal Output Voltage | 230VAC |
Output Rating Power | 6500w |
Surge Power | 9750w |
Transfer Time | <10ms |
Output Waveform | Pure sine wave |
THDV | <3% |
Efficiency(DC to AC) | 92% |
BATTERY&CHARGER | |
Nominal DC Voltage | 48VDC |
Max PV Charging Current | 110A |
Max AC Charging Current | 90A |
Max Charging Current | 110A |
GENERAL PHYSICAL | |
Dmmension,D*W*H(mm) | 100*262*430 |
Net Weight(kg) | 9 |
INTERFACE | |
Upper Comptter Communication Port | RS-485 |
WIFI / BMS Communication Port | RS-485 |
ENVIRONMENT | |
Humidity | 0-9%RH(Non-condensing) |
Operating Temperature | -10 to 50 |
Can connect to the power grid. Supports grid-connected operation, allows for arbitrage on peak and valley electricity prices, automatically switches to energy storage supply during peak price periods, effectively reducing household electricity costs, and provides the option to feed excess electricity back into the grid.
Can connect to energy storage. Efficiently manages battery charging and discharging, stores solar energy or nighttime off-peak electricity, and provides a safe, stable, uninterrupted power supply during peak usage or grid failures, ensuring the continuous operation of important household loads.
Can connect to loads directly. Powers various indoor appliances, intelligently adjusting output voltage to ensure that critical equipment, such as refrigerators, air conditioners, and lighting, operates stably and efficiently under different modes. Additional advantage: External CT to prevent reverse flow. By using an external CT sensor, it intelligently detects the current direction, effectively preventing excess electricity from being fed back into the public grid, ensuring system safety and compliance, and avoiding fines from utility companies.
