High-Efficiency
Powered by SiC
100% 3-phase unbalanced Output
Compatible with multiple battery brandsinternet
Easy & Convenient
4 Intergrations: PV Inverter, PCS, EMS, EPS
3 Connections: Battery, EV Charger, Generator
Safe & Reliable
IP66 Protection
AI Powered AFCI Protection
Less than 10ms Switching Time

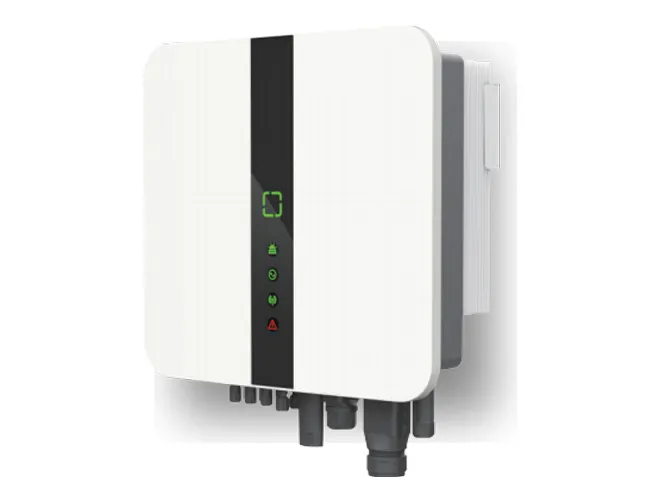

MODEL | HY8K-3PH-EU | |
PV Input | ||
Max. Input Power | 12000W | |
Max. Input Voltage | 1000V | |
Rated Input Voltage | 650V | |
Start-up Input Voltage | 180V | |
MPPT Operating Voltage Range | 200V~950V | |
Max. Input Current per MPPT | 14A | |
Max. Short-circuit Current per MPPT | 17A | |
No. of MPP Trackers | 2 | |
No. of Strings per MPP Tracker | 1 | |
Battery Data | ||
Battery Type | Li-ion | |
Battery Voltage Range | 170V～600V | |
Max. Charge / Discharge Current | 30A/ 30A | |
Rated Power | 8000W | |
Communication Interface | CAN, RS485 | |
Compatible Battery | Sunwoda, Pylontech, ACSUHO, CESC | |
AC Input and Output (On Grid) | ||
Rated Output Power | 8000W | |
Max. Output Apparent Power | 8800VA | |
Max. Input Apparent Power | 16000VA | |
Rated Grid Voltage | 3L / N / PE, 380V / 400V | |
Rated Grid Frequency | 50Hz / 60Hz | |
Max. Output Current (per phase) | 13.3A | |
Max. Input Current (per phase) | 24.2A | |
Power Factor | ~1 (Adjustable from 0.8 leading to 0.8 lagging) | |
Total Harmonic Distortion, THDi | <3% | |
Backup Output (Off Grid) | ||
Rated Output Power | 8000W | |
Peak Output Apparent Power，10s | 16000VA | |
Switch Time | <10ms | |
Rated Grid Voltage | 3L / N / PE, 380V / 400V | |
Rated Grid Frequency | 50Hz / 60Hz | |
Max. Output Current (per phase) | 13.3A | |
Total Harmonic Distortion, THDv | <3% | |
Efficiency | ||
Max. Efficiency | 98.0% | |
Euro Weighted Efficiency | 97.3% | |
Max. Battery Discharge Efficiency | 97.0% | |
Standard Compliance | ||
Grid Regulation | EN 50549-1, VDE-AR-N 4105, NA/EEA-NE7-CH2020,G98,G99,PPDS:2022, NC RfG | |
Safety Regulation | IEC/EN 62109-1, IEC/EN 62109-2 | |
EMC | IEC/EN 61000-6-1, IEC/EN 61000-6-3 | |
General Data | ||
Dimensions (W x H x D) | 514 x 496 x 205mm | |
Weight | 30kg | |
Installation | Wall-mounted | |
Operation Temperature | -25°C ~ +60°C (> 45°C Derating) | |
Operation Humidity | 0~95% RH, No Condensing | |
Protection Degree | IP66 | |
Max. Operating Altitude | 4000m | |
Cooling Method | Natural Convection | |
Noise Emission | <40dB | |
Topology | Transformerless | |
Display | LED indicator, APP | |
Signal Input and Output | DRM, 1×DI, 2×DO | |
Standby Consumption | <15W | |
Small to medium-sized commercial facilities (e.g., factories, offices, farms). These sites are ideal candidates for a robust 3 phase hybrid solar inverter to manage balanced loads.
Industrial sites with three-phase machinery.
Large residential complexes requiring three-phase power.
Any application aiming for significant energy cost reduction through peak shaving and self-consumption.
