Hootrum LDP Series Lithium Iron Phosphate (LiFePO4) batteries offer significant advantages for your commercial and professional floor machines, including longer battery life, increased productivity, consistent power, and free maintenance, providing a compelling reason to replace lead acid battery with lifepo4 ups in your equipment. Improve the efficiency of your work and save you time and money with our lithium batteries.
An built-in reliable Battery Management System (BMS) guarantees the safe operation during whole service life. The BMS is built with perfect automatic protection against over-voltage, over-current, over-discharge, over-temperature.
Engineered to be lightweight, durable, they deliver enduring power for your electronics, ensuring you explore with unwavering confidence.

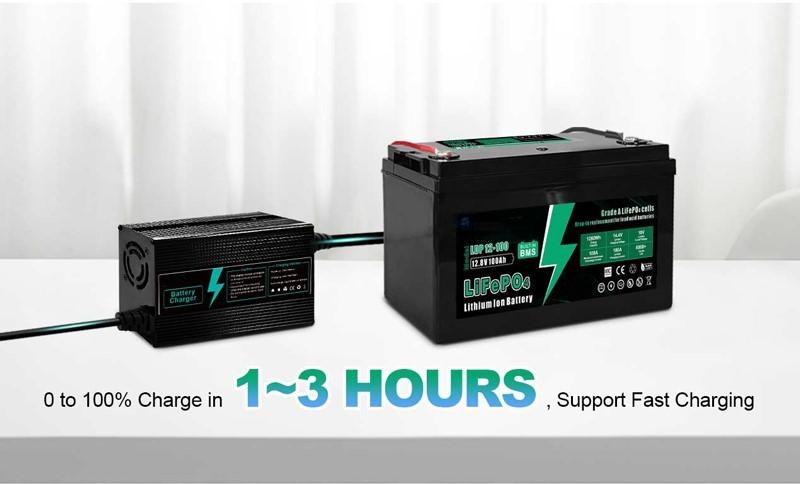

Hootrum lithium iron phosphate batteries can be easily fully-charged within a very short time due to large amps charging acceptance. it is able to accept up to 1C (1 x rated capacity) continuous charging amps which makes the battery can be fully charged within 1~3 hour. this feature will greatly improve the load service efficiency.
Battery Model | Nominal Voltage (V) | Rated Capacity @ 5-HR Rate (77°F/25°C) (Ah) | Typical energy (Wh) | Recommended charge current (A) | Max charge current (A) | Max continuous (A) | Outline Dimension | Weight (kg) | Terminal | ||||||
Length | Width | Height | |||||||||||||
(mm) | (in) | (mm) | (in) | (mm) | (in) | ||||||||||
LDP24-100 | 25.6 | 100 | 2560.0 | 50 | 100 | 100 | 522 | 20.55 | 240 | 9.45 | 220 | 8.66 | 23.5 | M8 | |
Charging temperature | (0℃~50℃) | ||||||||||||||
Discharge temperature | (-20℃~60℃) | ||||||||||||||
Recommended Storage Temperature | (10℃~35℃) | ||||||||||||||
| Basic parameter | |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah |
| Energy | 2560Wh |
| Series Connections | 2 Units Max |
| Parallel Connections | 4 Units Max |
| Protection | Over voltage, low voltage, over current, high temperature, low temperature, short circuit |
| Bluetooth | Optional |
| LCD | Optional |
| Active Balancing | Optional |
| DISCHARGE SPECIFICATIONS | |
| Maximum Continuous Discharge Current | 100A |
| Peak Discharge Current | 200A(2S) |
| Discharge Over-Current Protection | 300-400A(Conventional BMS, Non-Settable) / 110A±10A(Bluetooth BMS settable) |
| Recommended Low Voltage Disconnect | 22.4V(2.8vpc) |
| Discharge Under-Voltage Protection | 17.6V(2.2±0.1vpc) |
| CHARGE SPECIFICATIONS | |
| Maximum Continuous Charge Current | 100A |
| Recommended Charge Current | 50A |
| Recommended Charge Voltage | 28.4V-29.2V |
| BMS Charge Voltage Cut-Off | 30V(3.75±0.05vpc) |
| Charging Method | CC-CV |
| TEMPERATURE SPECIFICATIONS | |
| Discharge Temperature | -20℃~60℃（-4℉~140℉） |
| Charge Temperature | 0℃~50℃（32℉~122℉） |
| Recommended Storage Temperature | 10℃~35℃（50℉~95℉） |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 522x240x220mm |
| Weight | 23.5kg |
| Terminal Type | M8（MC4, Anderson, Others） |
| Case Material | ABS |
| Enclosure Protection (Waterpoof Rating) | IP55(IP68 Optional) |
Applications:
Bass Boats
Cabin Cruiser
Sailboat
Electric Boat
Skiff
