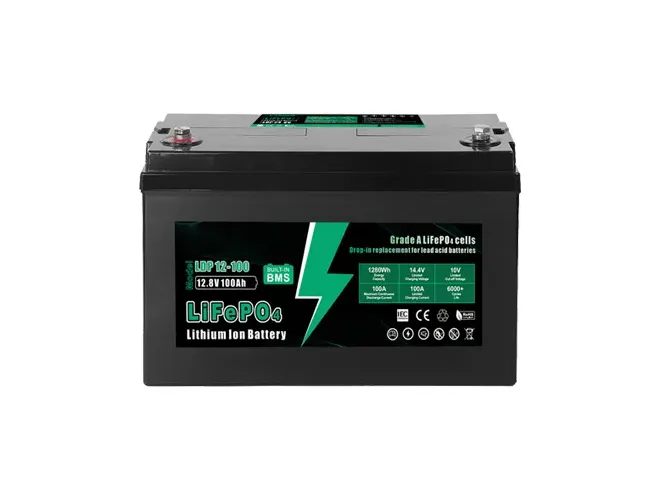

Hootrum LDP Series Lithium Iron Phosphate ( LiFePO4 ) batteries are developed to deliver high efficiency energy output compared to equivalent lead acid batteries, which is precisely why they are the optimal solution to replace lead acid battery with lifepo4 ups in any application. They are able to accept continuous high rate charging amps which make the battery fully charged in short time and improve the load service efficiency significantly. The built-in advanced BMS ensures intelligent automatic protection against over voltage, over current, over discharge, over temperature.
LDP series Lithium batteries can directly replace lead-acid batteries as well as offer superior performance compared to lead-acid batteries, it is an efficient and cost-effective choice for various applications.
Battery Management System (BMS) can improve battery safety, extend battery life and provide more reliable power.

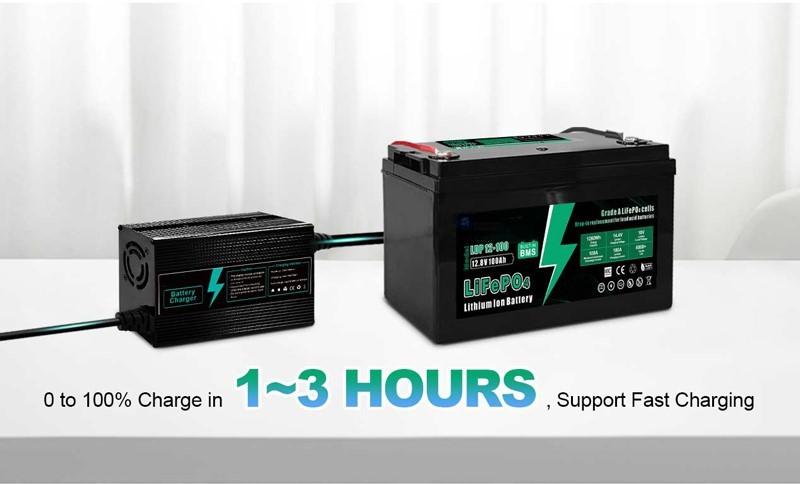

Hootrum lithium iron phosphate batteries can be easily fully-charged within a very short time due to large amps charging acceptance. it is able to accept up to 1C (1 x rated capacity) continuous charging amps which makes the battery can be fully charged within 1~3 hour. this feature will greatly improve the load service efficiency.
Check the battery data and operating status at any time through the mobile APP, set the battery parameters, and manage the battery more intelligently and conveniently.
Battery Model | Nominal Voltage (V) | Rated Capacity @ 5-HR Rate (77°F/25°C) (Ah) | Typical energy (Wh) | Recommended charge current (A) | Max charge current (A) | Max continuous (A) | Outline Dimension | Weight (kg) | Terminal | ||||||
Length | Width | Height | |||||||||||||
(mm) | (in) | (mm) | (in) | (mm) | (in) | ||||||||||
LDP24-200 | 25.6 | 200 | 5120.0 | 100 | 150 | 150 | 522 | 20.55 | 268 | 10.55 | 220 | 8.66 | 38 | M8 | |
Charging temperature | (0℃~50℃) | ||||||||||||||
Discharge temperature | (-20℃~60℃) | ||||||||||||||
Recommended Storage Temperature | (10℃~35℃) | ||||||||||||||
| Basic parameter | |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 200Ah |
| Energy | 5120Wh |
| Series Connections | 2 Units Max |
| Parallel Connections | 4 Units Max |
| Protection | Over voltage, low voltage, over current, high temperature, low temperature, short circuit |
| Bluetooth | Optional |
| LCD | Optional |
| Active Balancing | Optional |
| DISCHARGE SPECIFICATIONS | |
| Maximum Continuous Discharge Current | 150A |
| Peak Discharge Current | 250A(5S) |
| Discharge Over-Current Protection | 450-600A(Conventional BMS, Non-Settable) / 150A±10A(Bluetooth BMS settable) |
| Recommended Low Voltage Disconnect | 22.4V(2.8vpc) |
| Discharge Under-Voltage Protection | 8.8V(2.2±0.1vpc) |
| CHARGE SPECIFICATIONS | |
| Maximum Continuous Charge Current | 150A |
| Recommended Charge Current | 100A |
| Recommended Charge Voltage | 28.4V-29.2V |
| BMS Charge Voltage Cut-Off | 30V(3.75±0.05vpc) |
| Charging Method | CC-CV |
| TEMPERATURE SPECIFICATIONS | |
| Discharge Temperature | -20℃~60℃（-4℉~140℉） |
| Charge Temperature | 0℃~50℃（32℉~122℉） |
| Recommended Storage Temperature | 10℃~35℃（50℉~95℉） |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 522x268x220mm |
| Weight | 38.0kg |
| Terminal Type | M8（MC4, Anderson, Others） |
| Case Material | ABS |
| Enclosure Protection (Waterpoof Rating) | IP55(IP68 Optional) |
Applications:
Solar system
RV
Two & Three Wheel Vehicles
Floor Cleaning Machine
Marine
Home appliances
Golf Carts & Trolley
Material Handling
