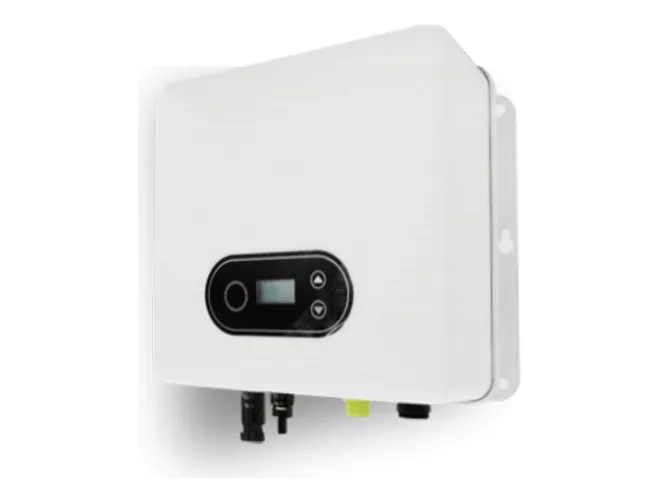

G36K-3PEU(36KW, 230/400Vac, 50Hz/60Hz)

Input Data(DC)

Max.Input Power (for module STC)

54KW

Max. DC Voltage

1100V

Start-up Voltage

180V

Nominal Voltage

600V

MPPT Voltage Range

200-1000v

No. of MPPT Trackers

3

No. of PV Strings per MPP Tracker

2/2/2

Max.Input Current per MPP Tracker

40A*3

Output Data(AC)

Nominal Output Power

36kw

Max. AC Apparent Power

39.6KVA

Nominal AC Voltage(Range)

230/400V(340-440V)

AC Grid  Frequency (Range)

50/60HZ(45-55/55-65HZ)

Max.Output Current( PF=0.9)

60A

Power factor(adjustable)

0.8leading-0.8lagging

THDi

<3%

AC Grid  Connection Type

3L/N/PE or 3L/PE

Efficiency

Max. Efficiency

98.40%

European Efficiency

98.00%

MPPT Efficiency

99.90%

Protection

DC Reverse Polarity Protection

Yes

DC Switch

Yes

AC/DC Surge Protection

Yes

Insulation Resistance Monitoring

Yes

AC Short-circuit Protection

Yes

Grid Monitoring

Yes

Anti-islanding Protection

Yes

Residual-current Monitoring Unit

Yes

AFCI Protection

Optional

String Fault Monitoring

Optional

General Data

Dimensions (W×H×D)

590*480*237mm

Weight

34kg

Operating Temperature Range

-25~+60C,(>45C Derating )

Relative Humidity

0 - 100%

Altitude

4000 m (>2000 m derating)

Self-consumption at Night

<1 W

Topology

Transformerless

Cooling

Natural Cooling

Protection Degree

IP66

Guarantee Period

5 Years / 10Years(Optional)

Display and Communication

Display

LED&LCD

Communication

Yes:RS485/USB, Optional:4G/WiFi

Criteria Met

Grid Connection Standards

G98/G99, VDE0126, VDE4105, VDE0124, EN50549-1/2, CEI 0-21/CEI 0-16, AS4777.2, IEC61727, IEC62116, PEA, MEA

Safety Standards

IEC62109-1/2, IEC62116, IEC61727, IEC61683, IEC60068(1,2,14,30)

EMC Standards

EN61000-6-1/2/3/4
