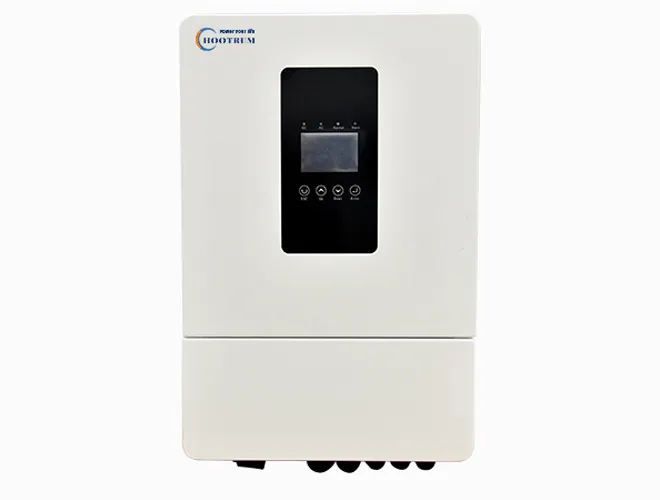

HY12K-1P-EU (12KW, 230Vac, 50Hz/60Hz, 40-60V Battery)

Battery Input Data

Battery Type

Lead-acid or Lithium-ion

Battery Voltage Range (V)

48V (40-60)

Max. Charging Current (A)

220

Max. Discharging Current (A)

8800

Charging Curve

3 Stages/Equalization

Charging Strategy for Li-Ion Battery

Self-adaption to BMS

PV String Input Data

Max.DC Input Power(W)

12500

PV Input Voltage(V)

370(100~500)

MPPT Voltage Range(V)

125-425

Full Load DC Voltage Range(V)

240~425

Start-up Voltage(V)

100

Max.PV Input Current/ISC PV(A)

18+18 / 28+28

No.of MPPT Trackers/Number input strings

2/2+2

AC Output Data

Rated AC Output and UPS Power(W）

12000/12000

Peak Power(off grid)

2times the rated power，10S

AC Output Rated Current(A)

57.2

Max.AC Current (A)

78

Power Factor Adjustment Range

1.0（ -0.8~+0.8）

Output Frequency and Voltage

50/60Hz;230Vac

Grid Type

Single Phase

Current Harmonic Distortion

THD<3%(Linear load<1.5%)

Efficiency

Max.Efficiency/Euro Efficiency/MPPT Efficiency

97.6%/97.0%/99.9%

Equipment Protection

Integrated

PV Input Lightning Protection; Anti-islanding Protection; PV String Input Reverse Polarity Protection; Insulation Resistor Detection; Residual Current Monitoring Unit; Output Over Current Protection; Output Shorted Protection; Output Over Voltage Protection; DC circuit breaker.

Surge protection

DC Type II / AC Type II

General Data

Grid Regulation

VOE0126,AS4777,NRS2017,G98,IEC61683,IEC62116,IEC61727

Safety/EMC Standard

IEC62109-1,IEC62109-2/EN61000-6-1,EN61000-6-3,FCC15classB

Operating Temperatur Range(℃)/Protection Degree/Cooling/Noise(dB)

-25~60℃,>45℃ Derating/IP65/Smart cooling/<30 dB

Communication with BMS

RS485;CAN

Weight(kg)

30.5

Size(mm)

410W×632H×238D

Installation Style

Wall-mounted

Warranty

5 years
