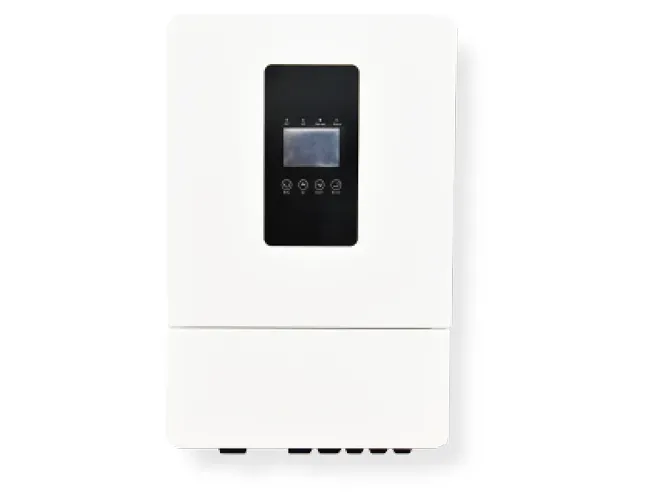

HY4.6K-1P-EU (4.6KW, 200/230/240Vac, 50Hz/60Hz, 40-60V Battery)

Battery Input Data

Battery Type

Lead-acid or Lithium-ion

Battery Voltage Range (V)

40-60

Max. Charge/Discharge Current (A)

110

Max. Charge/Discharge Power (kW)

5.06

Charge Curve

3 Stages/Equalization

Charge Strategy for Li-Ion Battery

Self-adaption to BMS

PV String Input Data

Max.DC Input Power(W)

9200

PV Input Voltage(V)

100~500

MPPT Voltage Range(V)

125~425

Full Load DC Voltage Range(V)

240~425

Start-up Voltage(V)

100

Max.PV Input Current/ISC PV(A)

18+18 / 28+28

No.of MPPT Trackers/Number input strings

2/1+1

AC Output Data

Rated AC Output and UPS Power(W）

4600

Max.AC Output Apparent Power(VA)

5060

Peak Power(off grid)

1.5 times the rated power，10S

AC Output Rated Current(A)

20.0

Max.AC Current (A)

22.0

Max.Continuous AC Passthrough(A)

35

Power Factor Adjustment Range

0.8 leading to 0.8 lagging

Output Frequency and Voltage

50/60Hz; 220/230 / 240Vac

Grid Type

Single Phase

Current Harmonic Distortion

THD<3% (Linear load<1.5%)

Efficiency

Max.Efficiency/Euro Efficiency/MPPT Efficiency

97.6%/97%/99.9%

Equipment Protection

Integrated

PV Input Lightning Protection; Anti-islanding Protection; PV String Input Reverse Polarity Protection; Insulation Resistor Detection; Residual Current Monitoring Unit; Output Over Current Protection; Output Shorted Protection; Output Over Voltage Protection; DC circuit breaker.

Surge protection

DC Type II/AC Type II

General Data

Grid Regulation

IEC61727,IEC62116,IEC61683

Safety/EMC Standard

IEC62109-1,IEC62109-2/IEC61000-6-1,IEC61000-6-3

Operating Temperatur Range(℃)/Protection Degree/Cooling/Noise(dB)

-25~60℃,>45℃ Derating/IP65/Natural cooling/<30 dB

Communication with BMS

RS485; CAN

Weight(kg)

20.5

Size(mm)

330W×580H×232D

Installation Style

Wall-mounted

Warranty

5 years
