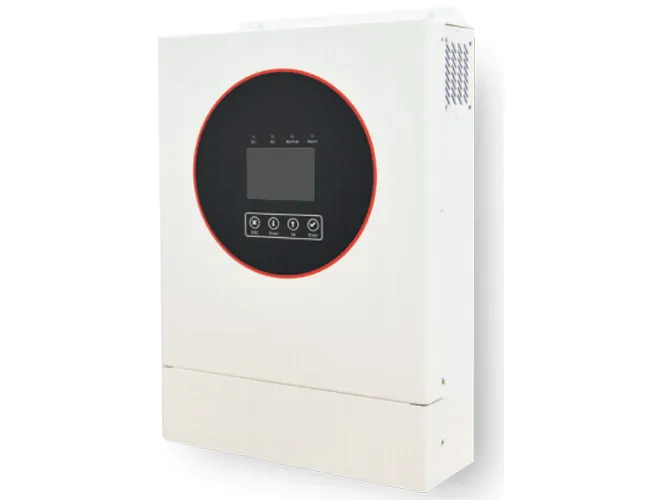

5.5KW, 230Vac, 50Hz/60Hz, 48V Battery – an advanced 5.5kW single phase hybrid inverter optimized for energy-conscious households and small enterprises, delivering high-capacity solar conversion and storage with efficient 48V battery technology for extended backup and self-consumption.
MODEL | HY5.5K48V-1P-EU |
Max PV Input Power | 6500w |
Rated Output Power | 6000w |
Max Charging Power | 6000w |
Phase | 1-Phase in/1-Phase out |
PV INPUT (DC） | |
Nominal DC Voltage /Max DC voltage | 360VDC/450VDC |
Start-up Voltage | 55VDC |
MPPT Voltage Range | 60VDC-430VDC |
Number of MPPT /Max Input Current | 1/20A |
MPPT Efficiency | >99% |
GRID-TIE-OPERATION GRID-TIE OUTPUT (AC) | |
Nominal Output Voltage | 230VAC |
Output Voltage Range | 170-264VAC/90-264VAC |
Nominal Output Current | 24A |
Power Factor | >0.99 |
THDI | <3% |
EFFICIENCY | |
Max Conversion Efficiency (DC/AC) | 93%(Battery To AC)/97%(PV To AC) |
DFF-GRID, HYBRID OPERATION | |
AC INTPUT | |
AC Start up Voltage / Auto Restart Voltage | 170VAC/180VAC |
Acceptable Input Voltage Range | 170-264VAC/90-264VAC |
Max AC Input Current | 30A |
BATTERY MODE OUTPUT (AC) | |
Nominal Output Voltage | 230VAC |
Output Rating Power | 5500w |
Surge Power | 8250w |
Transfer Time | <10ms |
Output Waveform | Pure sine wave |
THDV | <3% |
Efficiency(DC to AC) | 92% |
BATTERY&CHARGER | |
Nominal DC Voltage | 48VDC |
Max PV Charging Current | 100A |
Max AC Charging Current | 80A |
Max Charging Current | 100A |
GENERAL PHYSICAL | |
Dmmension,D*W*H(mm) | 100*262*430 |
Net Weight(kg) | 8.5 |
INTERFACE | |
Upper Comptter Communication Port | RS-485 |
WIFI / BMS Communication Port | RS-485 |
ENVIRONMENT | |
Humidity | 0-9%RH(Non-condensing) |
Operating Temperature | -10 to 50 |
